D-link Fast Ethernet desktop switch, 16 poorten

Physical

• 16 Gigabit Ethernet ports for fast network speeds and backwards compatibility
• Durable metal housing
• Fanless design for silent operation

Performance

• IEEE 802.3x Flow Control
• Auto MDI/MDI-X crossover for all ports
• Half/full-duplex for Ethernet/Fast Ethernet speeds
• Supports up to 10,000 bytes jumbo frames

Energy Efficiency

• Innovative D-Link Green Ethernet technology
• Link status detection
• 802.3az Energy-Efficient Ethernet (EEE)
• RoHS-compliant

Easy Installation

•  Plug-and-play installation with no additional configuration required

DIP Switch-Controllable Features

•  Energy-Efficient Ethernet (EEE), Flow Control, Port Isolation, and Storm Control

Technical Specifications

General

Number of Ports

• 16 10/100/1000 Mbps ports

Standards

• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.1p Quality of Service (QoS)
• IEEE 802.3x Flow Control supported for full-duplex
• Auto-negotiation
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Data Transfer Rates

• Ethernet: 10 Mbps/20 Mbps (half-duplex/full-duplex)
• Fast Ethernet: 100 Mbps/200 Mbps (half-duplex/full-duplex)
• Gigabit Ethernet: 2000 Mbps (full-duplex)

Network Cables

• Ethernet: 2-pair UTP Cat.3/4/5/5e, Unshielded Twisted Pair (UTP) Cable
• Fast Ethernet: 2-pair UTP Cat.5/5e, Unshielded Twisted Pair (UTP) Cable
• Gigabit Ethernet: 4-pair UTP Cat.5/5e, Unshielded Twisted Pair (UTP) Cable

Functionality

D-Link Green Features

• Power saving by link status and cable length

Security

• Storm Control

QoS (Quality of Service)

• 802.1p priority
• 8 queues

Cable Diagnostics

• Indicated through port LEDs

Switching Features

Protocol

• CSMA/CD

Switching Capacity

• 32 Gbps

Max. Forwarding Rate

• 23.81 mpps

Packet Buffer RAM

• 512 KBytes per device

Filtering Address Table

• 8K MAC addresses per device

Packet Filtering/Forwarding Rate

• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port

MAC Address Learning

• Self-learning, auto-aging

Forwarding Mode

•  Store-and-forward

Physical

Indicator LEDs

• Power LED (per device)
• Link/Activity/Speed LEDs (per port)

DIP Switch

• Energy-Efficient Ethernet (EEE)
• Flow Control
• Port Isolation and Storm Control

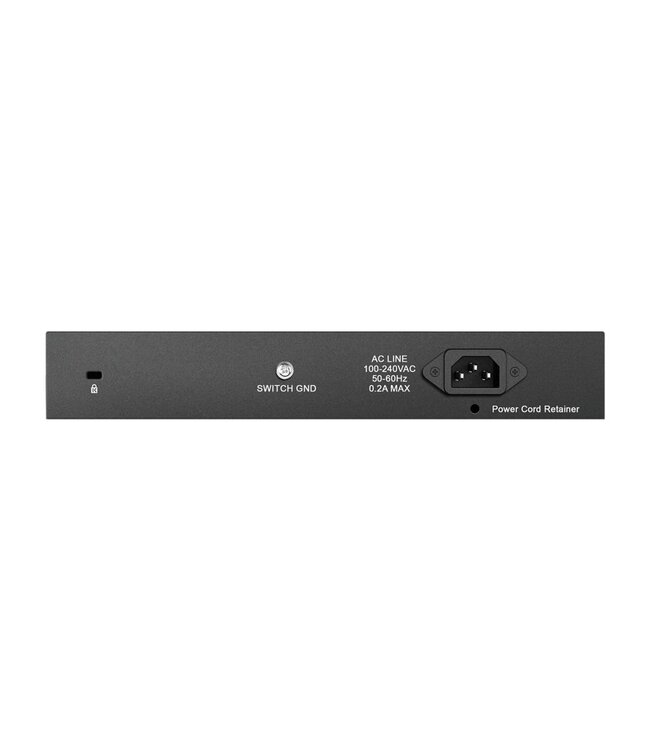

AC Inputs

• Internal universal power supply
• 100~240 V AC; 50 to 60 Hz, 0.2 A max

Maximum Power Consumption

• 10.07 W

Standby Power Consumption

• 3.02 W

Maximum Heat Dissipation

• 34.3 BTU/h

MTBF

• 1,882,372 hours

Acoustic Value

• 0 dB(A) Fanless

Dimensions

• 280 x 125 x 44 mm (11.02 x 4.92 x 1.73 inch)

Weight

• 1.02 kg (2.25 lbs)

Operating Temperature

• 0 ºC to 40 ºC (32 ºF to 104 ºF)

Storage Temperature

• -10 ºC to 70 ºC (14 ºF to 158 ºF)

Operating Humidity

• 0% to 95% RH, non-condensing

Storage Humidity

• 0% to 95% RH

Certifications

Emission Certifications (EMI)

• ICES-003 Class A
• FCC Class A
• RCM Class A
• BSMI Class A
• CE Class A
• VCCI A
• CCC
• KCC

Safety

• cUL/UL
• CE LVD
• CCC
• CB
• BSMI
